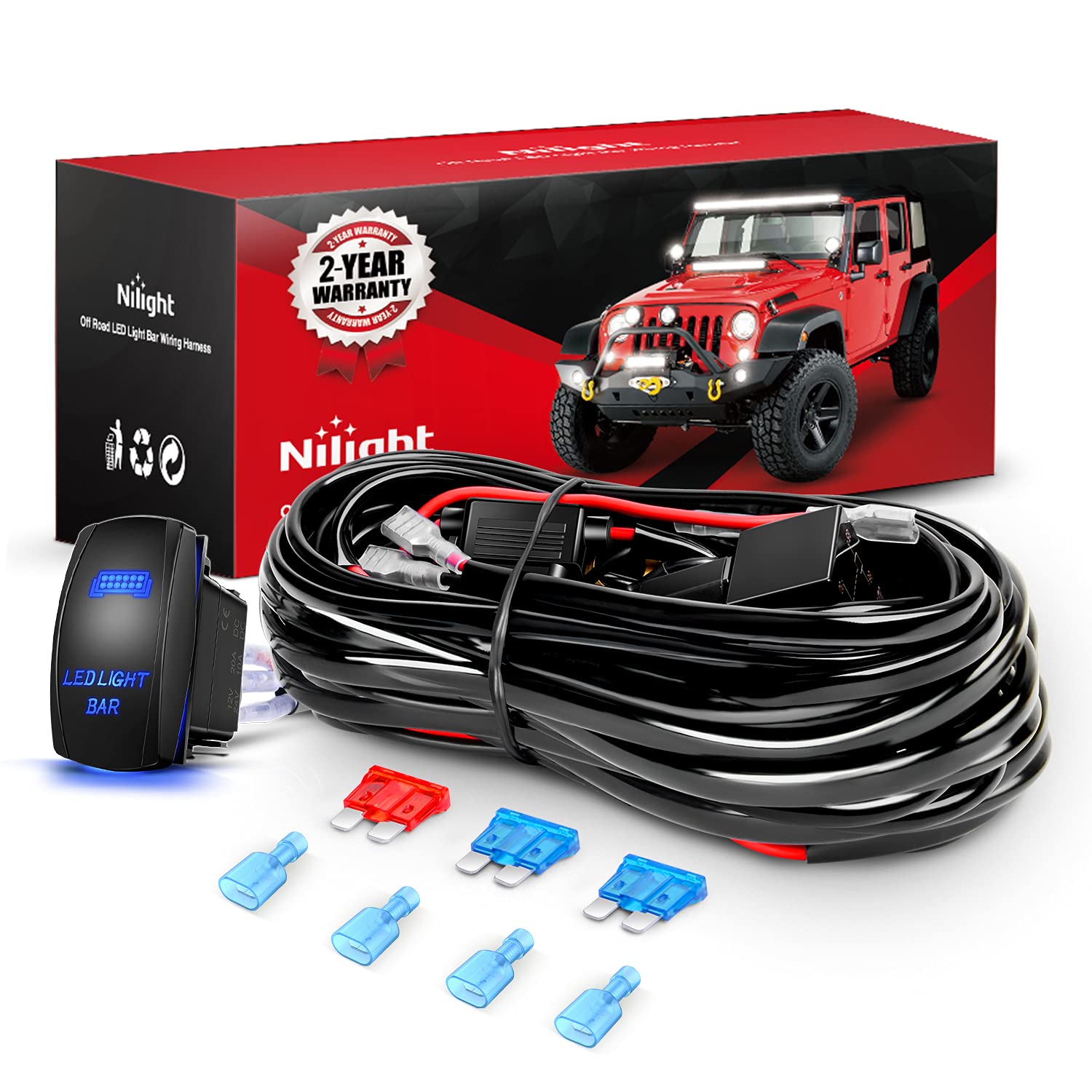

12V Dual-Lead LED Light Wiring Harness Kit with Rocker Switch

Description

Install and control compatible auxiliary LED lights with this 12V Dual-Lead Wiring Harness Kit. Built with 16-gauge wiring and two output leads, the harness can connect two compatible LED light bars, work lights, driving lights, or off-road lamps to a single switching system.

The included five-pin rocker switch provides convenient dashboard control, while the power relay allows the switch to manage the lighting circuit without carrying the full electrical load. An inline blade fuse helps protect compatible wiring and equipment against excessive current caused by selected electrical faults.

Suitable for compatible 12-volt cars, trucks, SUVs, 4x4 vehicles, boats, tractors, and utility equipment, this kit provides the primary components needed for a clean and organized auxiliary-light installation.

✨ Features

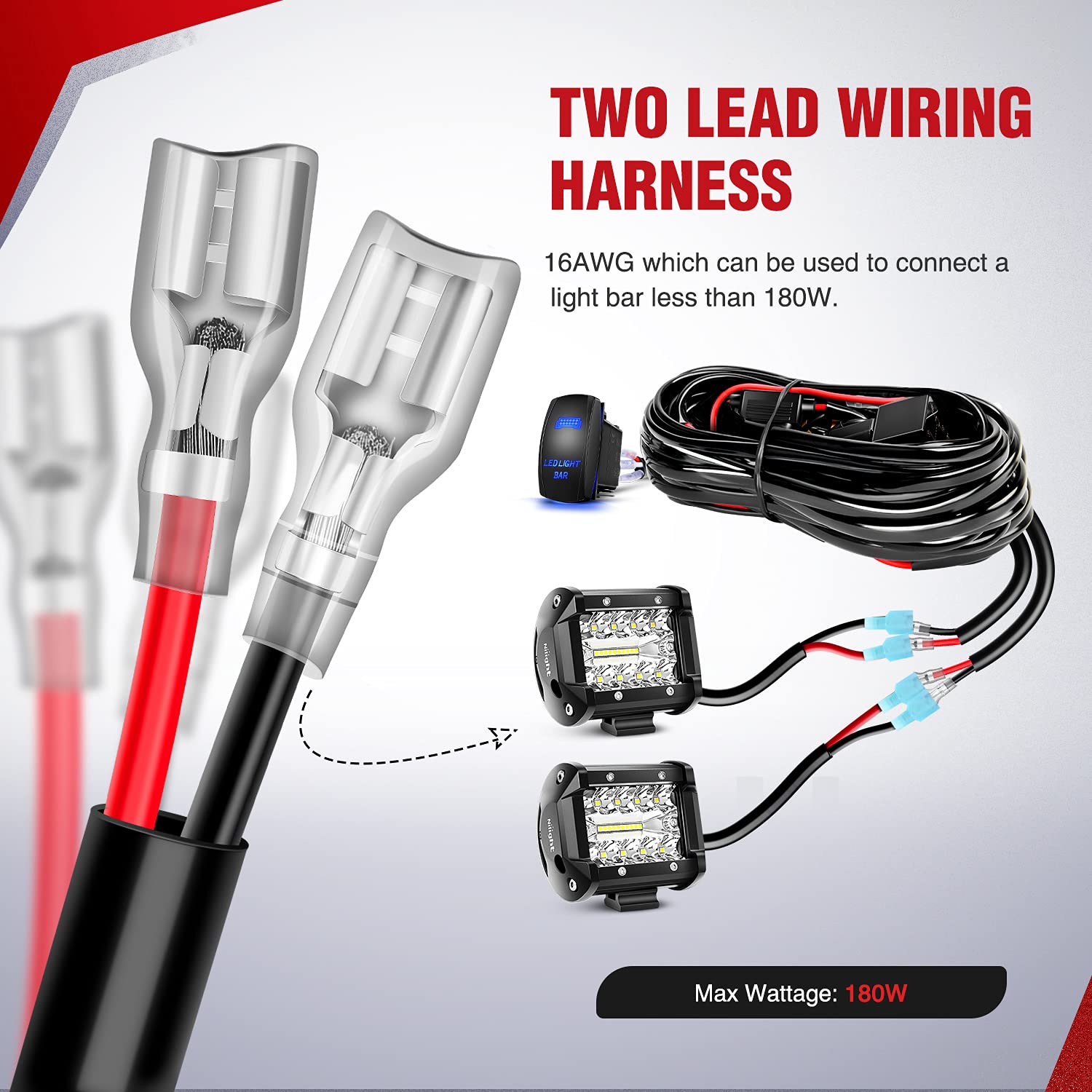

💡 Dual Lighting Outputs

Includes two leads for connecting two compatible LED lights.

Ideal for paired light bars, work lamps, fog lights, or driving lights.

🔌 16-Gauge Wiring

Uses 16 AWG wiring for compatible 12-volt auxiliary-light installations.

Suitable for loads that remain within the harness and fuse ratings.

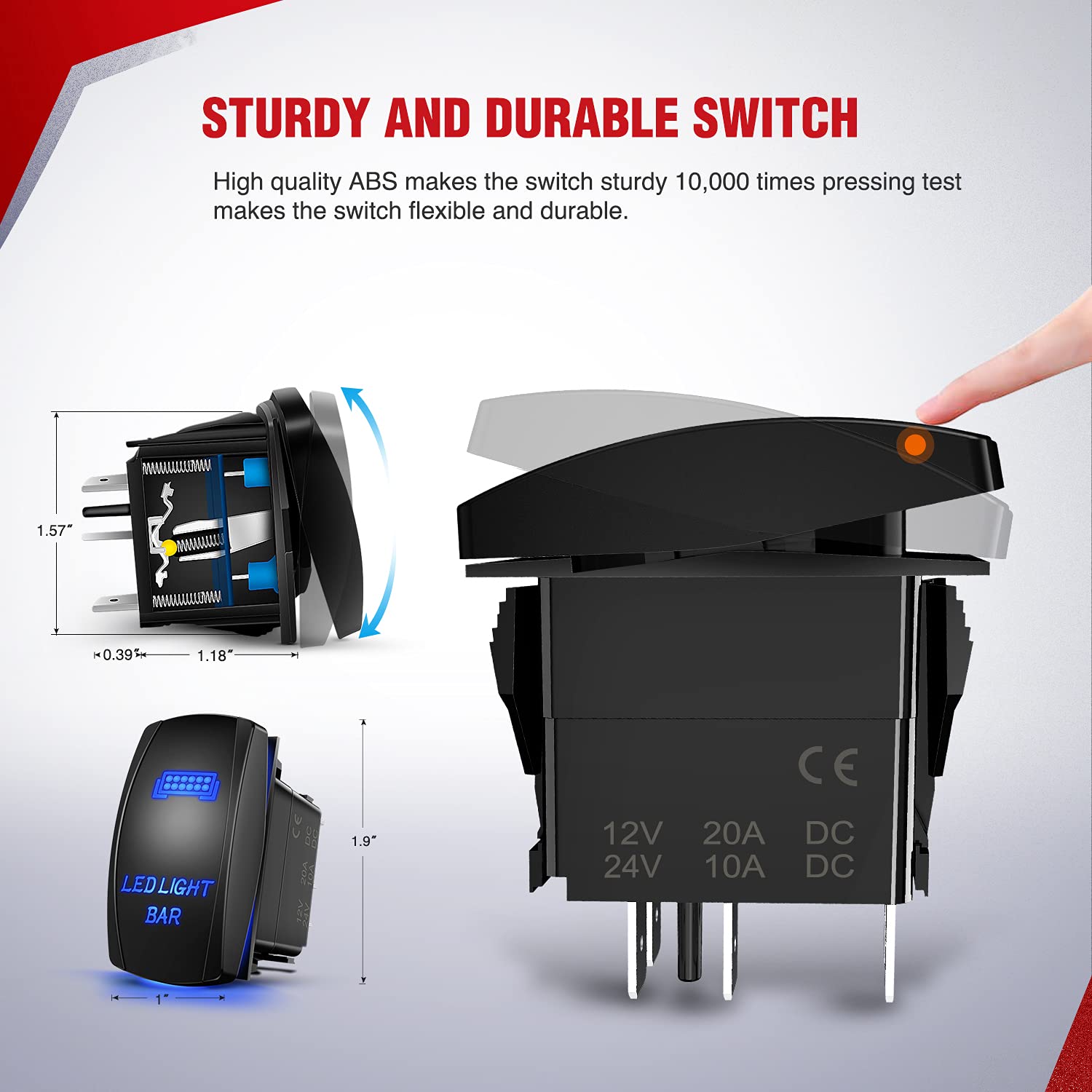

🎛️ Five-Pin Rocker Switch

Includes an on/off rocker switch for convenient lighting control.

Suitable for installation in a compatible dashboard or switch panel opening.

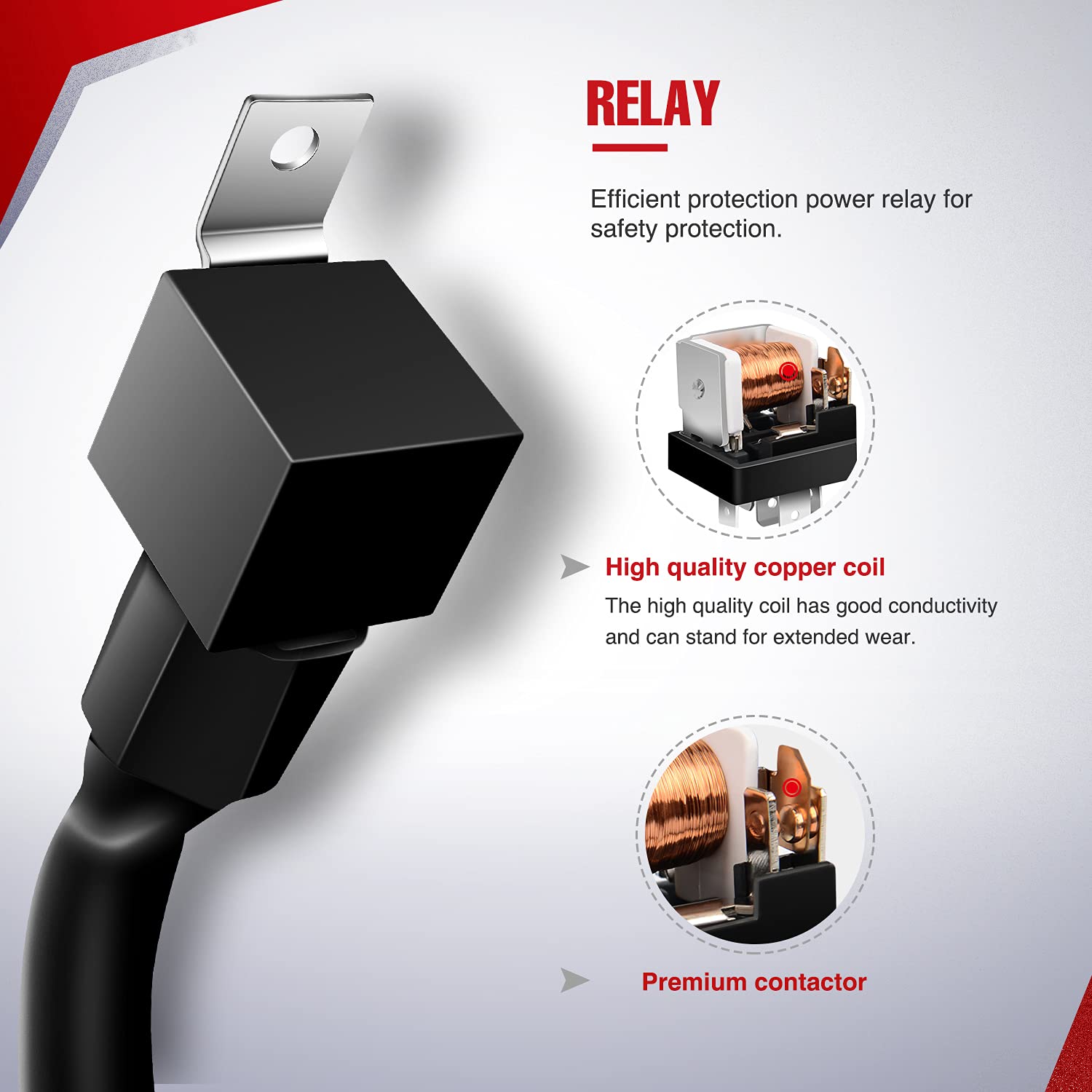

⚡ Power Relay Included

The relay handles the primary lighting load while the switch controls the relay circuit.

Helps reduce high-current demand across the dashboard switch.

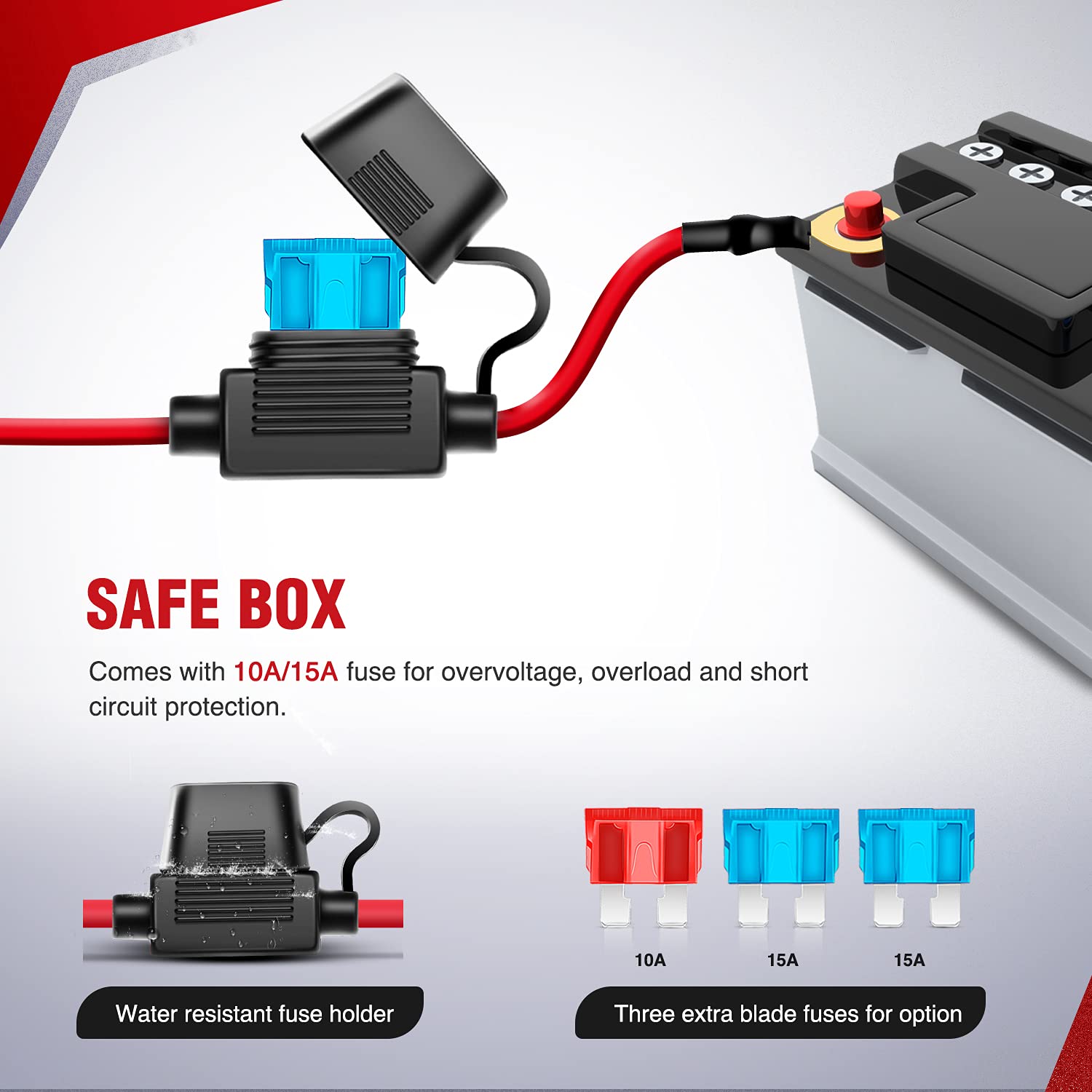

🛡️ Inline Blade Fuse

Features a replaceable blade fuse within the power circuit.

Helps protect the harness and connected equipment from selected overcurrent conditions.

🔋 Designed for 12V Systems

Suitable for compatible 12-volt automotive and marine electrical systems.

Useful for vehicles, boats, tractors, and utility equipment.

🚙 Multiple Vehicle Applications

Works with compatible cars, trucks, SUVs, off-road vehicles, and recreational equipment.

Fitment depends on the available installation space and electrical requirements.

🧰 Organized Installation Kit

Combines wiring, switching, relay control, and circuit protection in one package.

Reduces the need to source basic installation components individually.

📅 Two-Year Warranty

Advertised with two-year warranty coverage.

Warranty eligibility and terms should be confirmed with the retailer or supplier.

📋 Specifications

Product Type: LED Light Wiring Harness Kit
Electrical System: 12V DC
Wire Gauge: 16 AWG
Output Configuration: 2 Lighting Leads
Switch Type: Five-Pin On/Off Rocker Switch
Circuit Control: Power Relay
Circuit Protection: Inline Blade Fuse
Suitable Lights: Compatible LED Light Bars, Work Lights, Fog Lights & Driving Lamps
Suitable Applications: Cars, Trucks, SUVs, 4x4 Vehicles, Boats, Tractors & Utility Equipment
Recommended Use: Auxiliary-Light Installation & Control
Advertised Warranty: 2 Years
Package Quantity: 1 Wiring Harness Kit

⚠️ Compatibility & Installation Note

Confirm the voltage, current draw, wattage, fuse rating, wire capacity, connector type, and grounding requirements of the connected lights before installation. The combined lighting load must remain within the ratings of the harness, relay, fuse, switch, and vehicle electrical system.

Disconnect the battery before wiring. Route cables away from exhaust components, sharp edges, steering parts, belts, fans, and other moving or high-temperature areas. Use suitable grommets, insulation, weatherproof connections, and secure grounding points.

Marine installations may require additional waterproofing and corrosion-resistant terminals. Professional installation is recommended when the vehicle wiring or electrical load is uncertain.

⭐ Why You’ll Love It

✅ 💡 Controls Two Compatible LED Lights
✅ 🔌 Uses 16-Gauge Wiring
✅ 🎛️ Includes a Five-Pin Rocker Switch
✅ ⚡ Features Relay-Controlled Power
✅ 🛡️ Includes Inline Blade-Fuse Protection
✅ 🔋 Designed for Compatible 12V Systems
✅ 🚙 Suitable for Multiple Vehicle Types
✅ 🚤 Useful for Selected Marine Applications
✅ 🧰 Provides Essential Installation Components
✅ 📅 Advertised with Two-Year Warranty Coverage
