Wire Tracer Tone Generator & Probe Kit

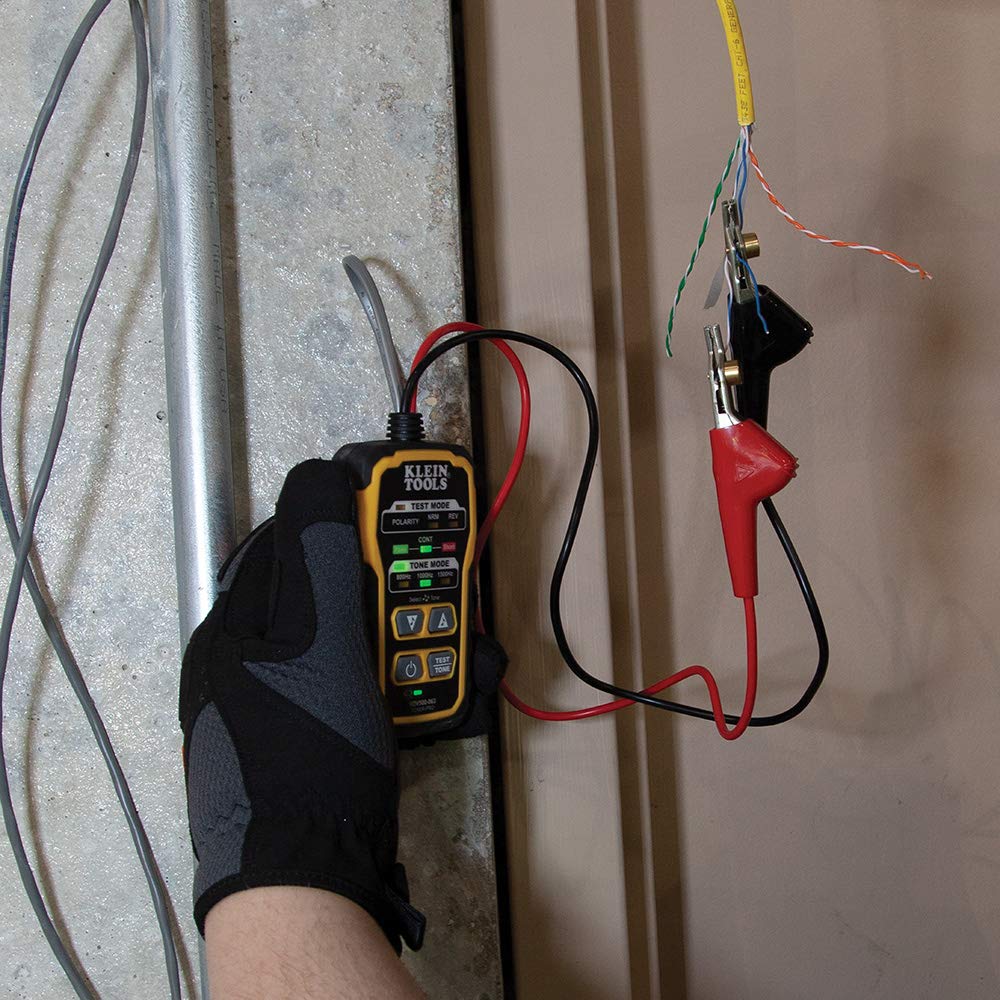

Trace, identify, and troubleshoot non-energized wiring with this Wire Tracer Tone Generator & Probe Kit. Designed for professional electrical, telecommunications, networking, and low-voltage applications, this versatile kit helps locate individual wires and cable pairs across common telephone, Ethernet, speaker, coaxial, video, and data cable systems.

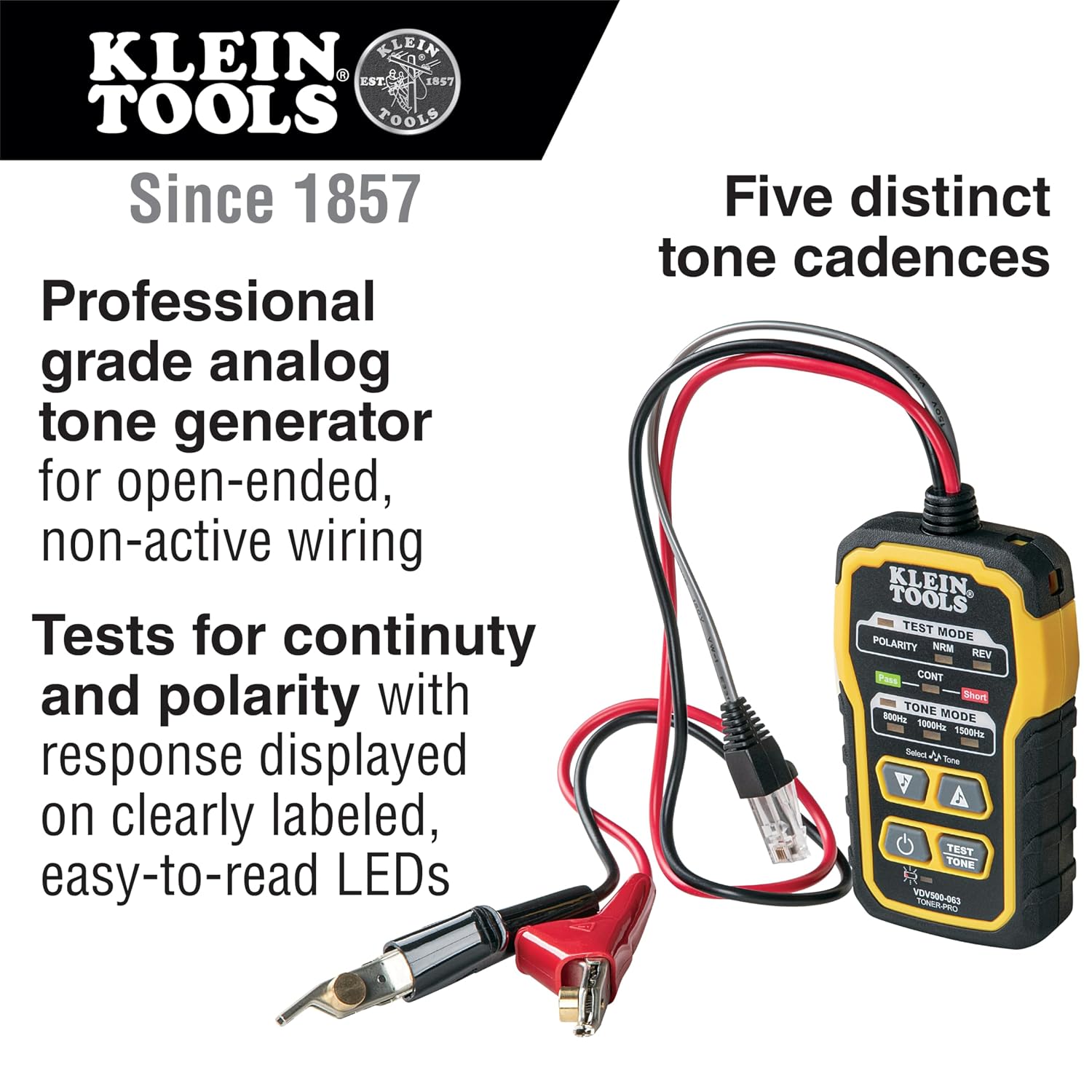

The professional-grade tone generator provides five distinct tone cadences for easier wire and pair identification. Its angled bed-of-nails clips securely attach to wires, while the RJ11 plug can connect to telephone or RJ45 data jacks for toning compatible wire pairs. The tone generator also checks continuity and polarity, with results displayed through clearly labeled LEDs. :contentReference[oaicite:0]{index=0}

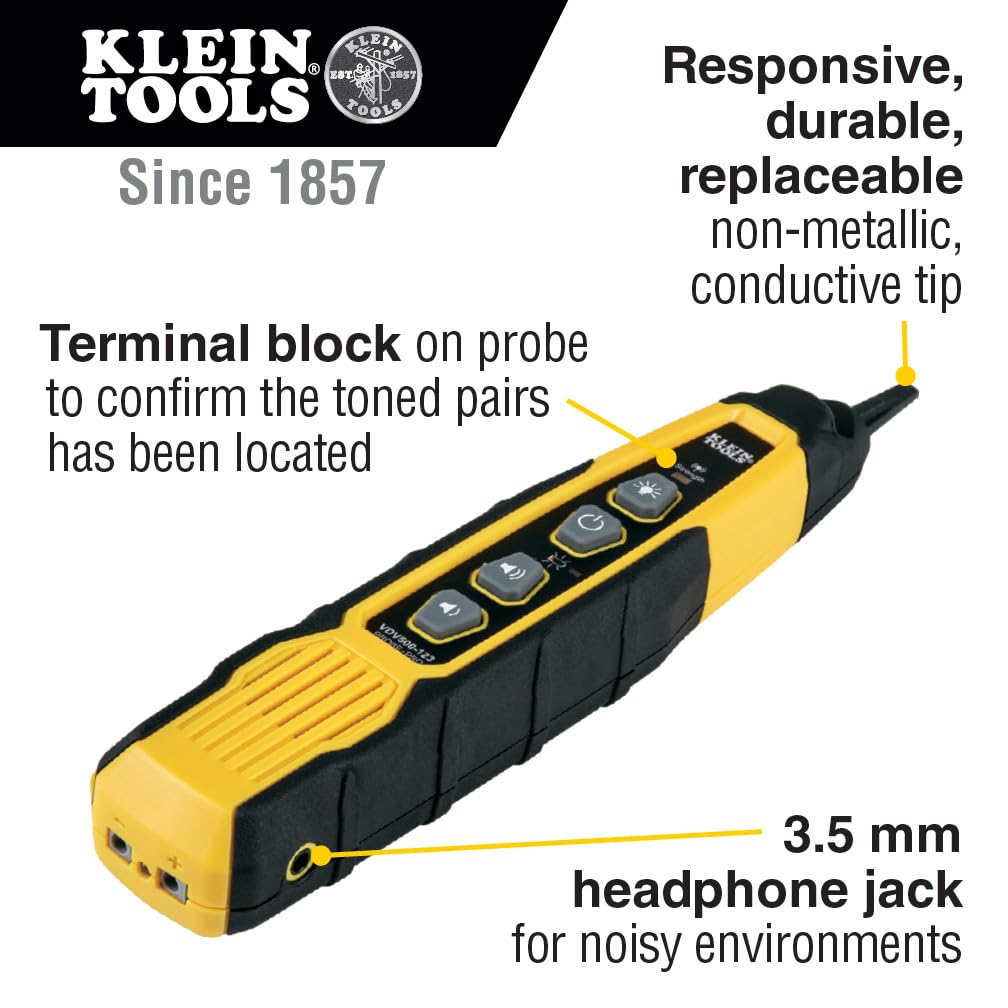

The tracing probe detects the transmitted tone and features an adjustable-volume speaker for audible signal detection. A 3.5 mm headphone jack allows compatible headphones to be used in noisy environments, while the built-in worklight helps illuminate dark spaces during cable tracing. :contentReference[oaicite:1]{index=1}

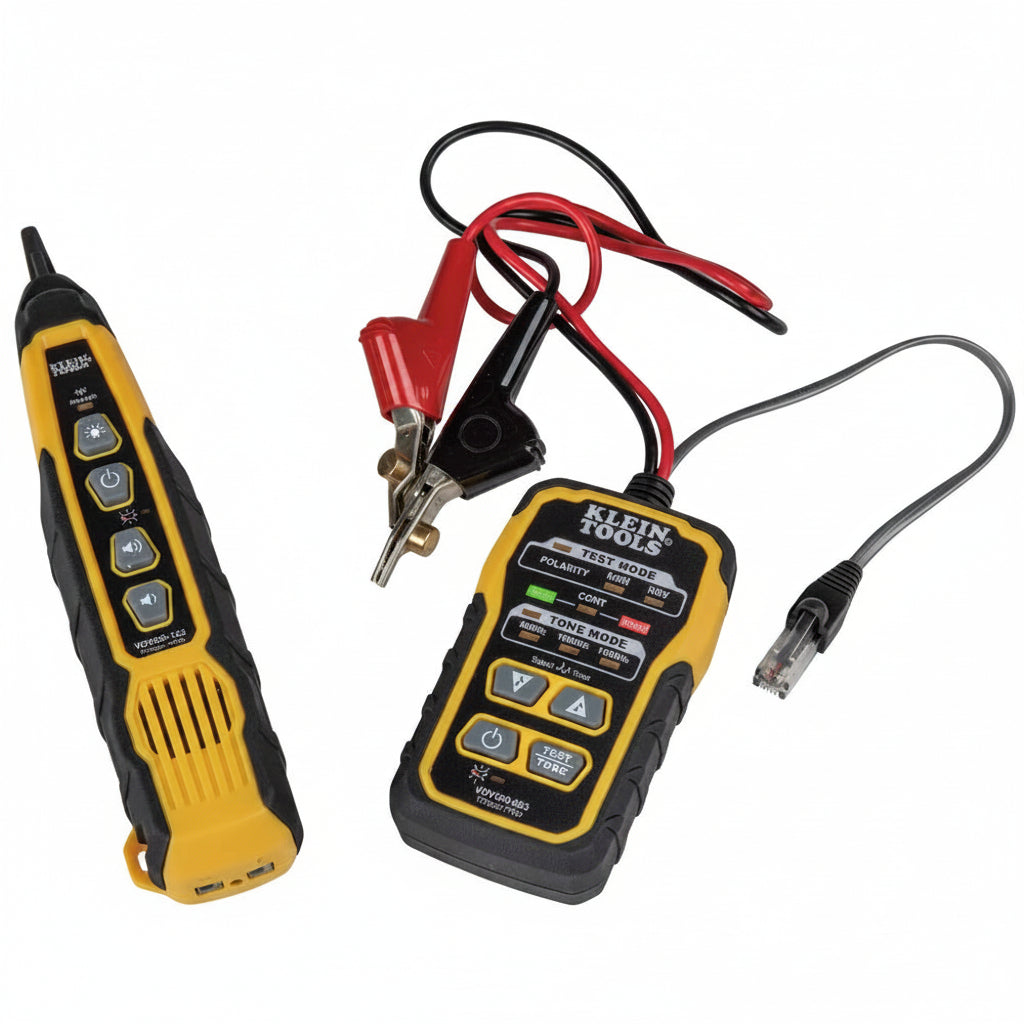

The durable probe includes a non-metallic replaceable conductive tip and a terminal block that can help confirm the toned pair without disturbing other services. The complete kit includes the tone generator, tracing probe, batteries, and a padded divided carrying pouch for convenient storage and transportation. :contentReference[oaicite:2]{index=2}

✨ Features

🔎 Professional Wire Tracing

Designed to help identify and trace individual wires and cable pairs in common non-energized wiring systems.

🎵 Five Tone Cadences

The tone generator provides five distinct tone patterns to help identify and distinguish specific wire pairs. :contentReference[oaicite:3]{index=3}

🔧 Angled Bed-of-Nails Clips

Rugged ABN clips securely grip compatible wires for convenient tone transmission.

🔌 RJ11 & RJ45 Connectivity

RJ11 connection makes it convenient to tone compatible telephone and RJ45 data jack wiring. :contentReference[oaicite:4]{index=4}

💡 Continuity & Polarity Testing

The tone generator checks continuity and polarity, with results displayed through clearly labeled LEDs.

🔊 Adjustable Probe Volume

The tracing probe features an adjustable speaker volume for easier tone detection in different work environments.

🎧 Headphone Jack

A 3.5 mm headphone jack allows compatible headphones to be connected for use in noisy environments.

💡 Built-In Worklight

The probe includes a worklight to illuminate dark work areas during cable identification and tracing.

🧲 Non-Metallic Conductive Tip

The replaceable conductive probe tip is designed for responsive tracing while helping avoid unnecessary contact with surrounding conductors.

📍 Terminal Block

The probe includes a terminal block that can help confirm the toned pair without disturbing other services.

🧰 Multiple Cable Applications

Suitable for tracing compatible Ethernet, telephone, speaker, coaxial, video, and data cables.

🎒 Convenient Carrying Pouch

The included padded, divided zipper pouch keeps the tools organized during storage and transportation.

🔋 Batteries Included

The kit includes the required AAA batteries for convenient setup and use. :contentReference[oaicite:5]{index=5}

📋 Specifications

Product Type: Wire Tracer & Tone Probe Kit

Model: VDV500-820

Application: Wire Toning & Tracing

Tone Cadences: 5

Continuity Testing: Yes

Polarity Testing: Yes

Connections: RJ11 and RJ45 Compatible

Probe: Inductive Tone Tracing Probe

Probe Tip: Replaceable Non-Metallic Conductive Tip

Headphone Connection: 3.5 mm

Worklight: Yes

Probe Speaker: Adjustable Volume

Battery Type: AAA Alkaline

Batteries Included: 8 AAA Batteries

Carrying Case: Padded Divided Zipper Pouch

Overall Kit Dimensions: Approx. 7" × 12" × 3"

Weight: Approx. 0.82 lb

Recommended Use: Ethernet, Telephone, Speaker, Coaxial, Video, Data Cable and General Non-Energized Wire Tracing :contentReference[oaicite:6]{index=6}

⚠️ Important Note

This kit is designed for tracing non-energized wiring. Do not use the instruments on energized circuits. Carefully read and follow all manufacturer instructions and safety information before use. Do not use damaged or wet equipment, and make sure the battery door is properly secured during operation. :contentReference[oaicite:7]{index=7}
